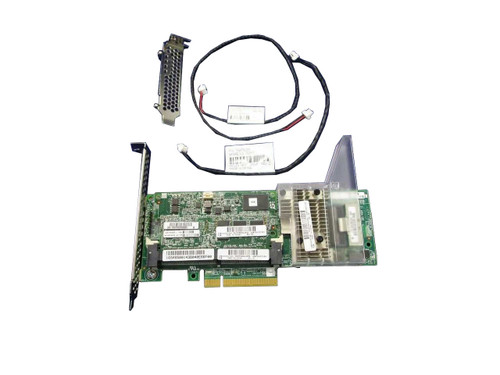

HPE Smart Array P440 PCIe3 x8 SAS controller - Internal x8 mini-SAS double-wide port, 2GB of flashed back write cache (FBWC) memory, 12Gb/sec transfer rate SAS, 6Gb/sec transfer rate SATA. One battery pack provides flash back write cache (FBWC) for all the drive controllers in the server and connects to the system I/O board but is not included with the 830057-001. The 830057-001 does not include any cables and only includes the card.
HPE Smart Array P440 Controller is a low-profile, PCIe3 x8, 12Gb/s SAS RAID controller that provides enterprise-class storage performance, increased internal storage scalability and data protection for Gen9 HPE ProLiant rack and tower servers as well as Apollo systems. The 830057-001 features eight internal physical links and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration and pre-failure warnings.
- Part Number: 830057-001
- Manufacturer: HPE
- Category: Smart Array
- Product Type: Storage Controller (RAID)
- Host Bus: Pci-Express 3.0 x8
- Data Transfer Rate: 1.2Gb/s
- Buffer Size: 2Gb
- RAID Levels: 0, 1, 1 ADM, 10, 10ADM, 5, 50, 6, 60
- Supported Devices: Disk Array (RAID)
- Physical Drives: Supports up to 200 Physical Drives
- Logical Drives: Up to 64 Logical Drives
- Channel Quantity: 8
- Form Factor: Low-Profile, Plug-In Card
